Centering Fixture
$475.00
Get notified by email when this product is in stock.
* Update 6/10/26 - Centering Fixture orders placed now will ship by 6/15. *

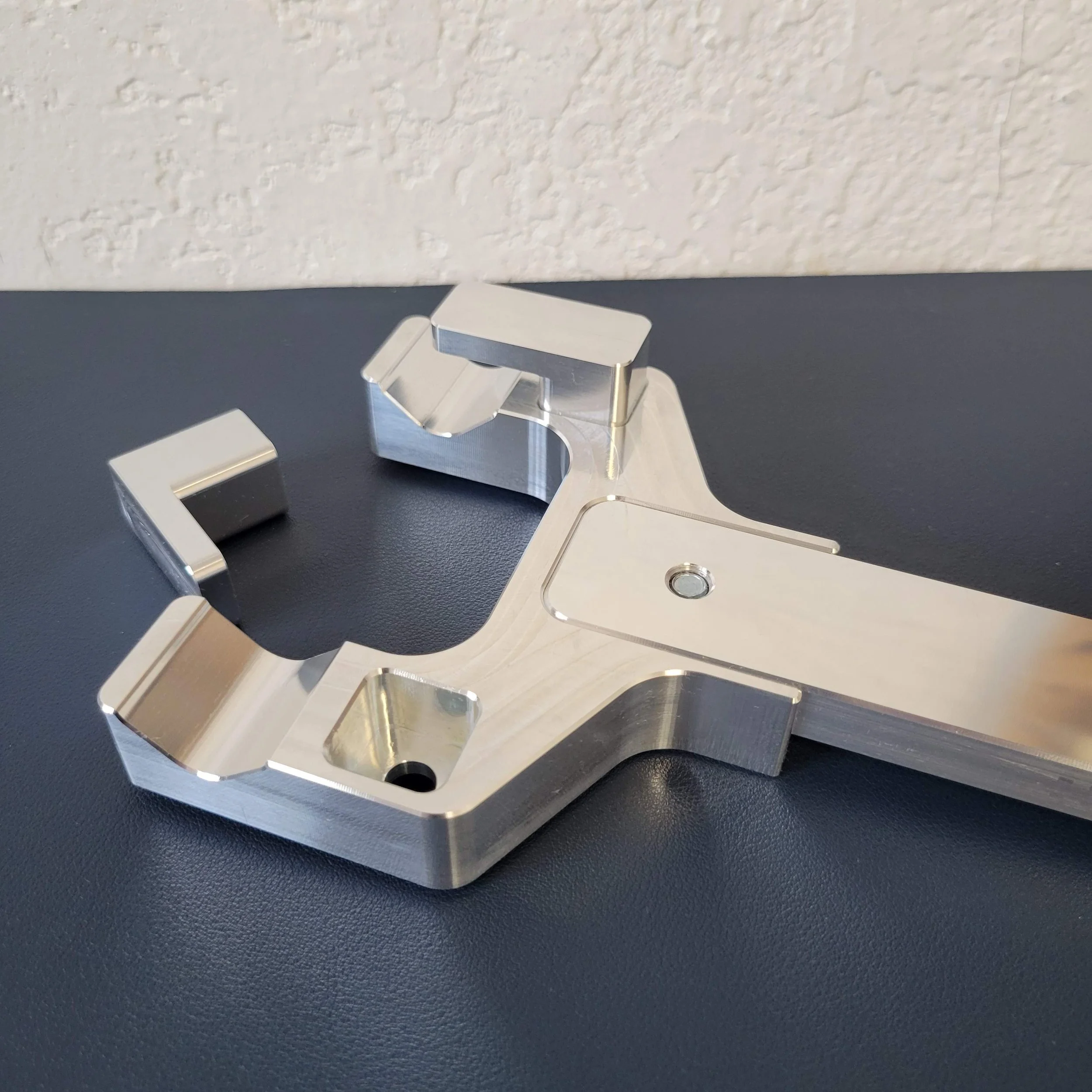

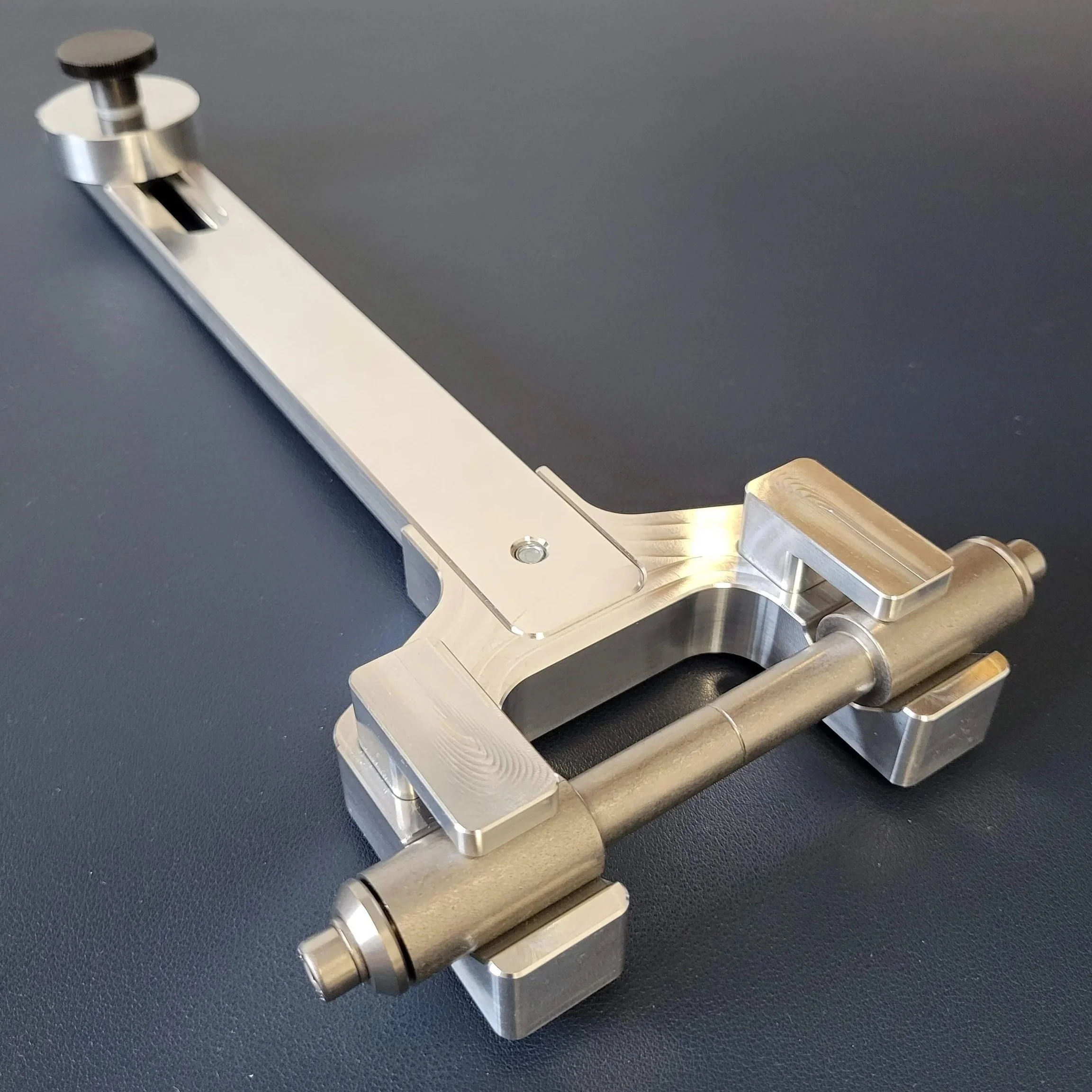

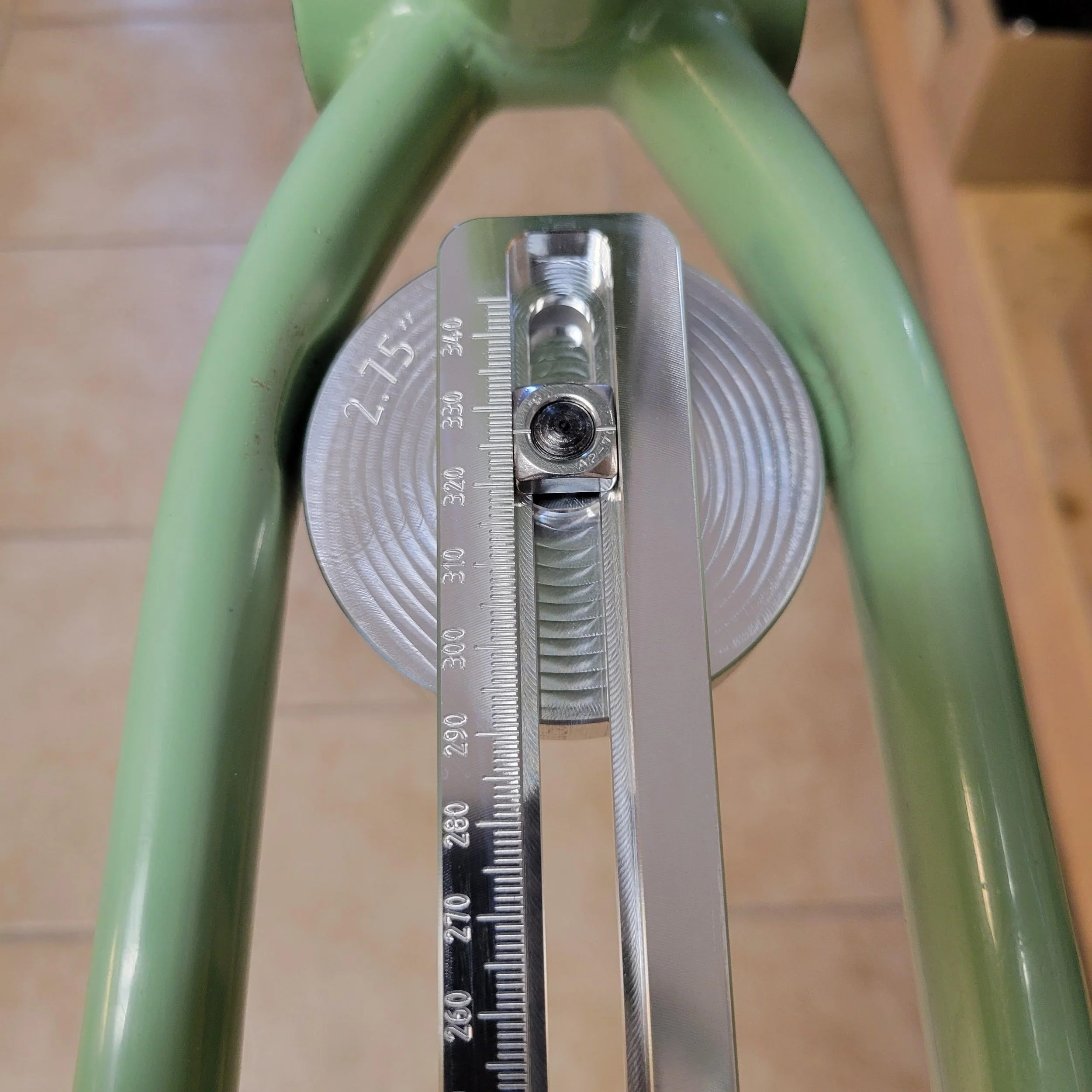

This tool can be used in or out of the frame jig and is compatible with any frame jig that uses Anvil/Paragon style dummy axles (2.5” center relief) and has 50mm (2”) of radial clearance from the centerline of the dummy axle.

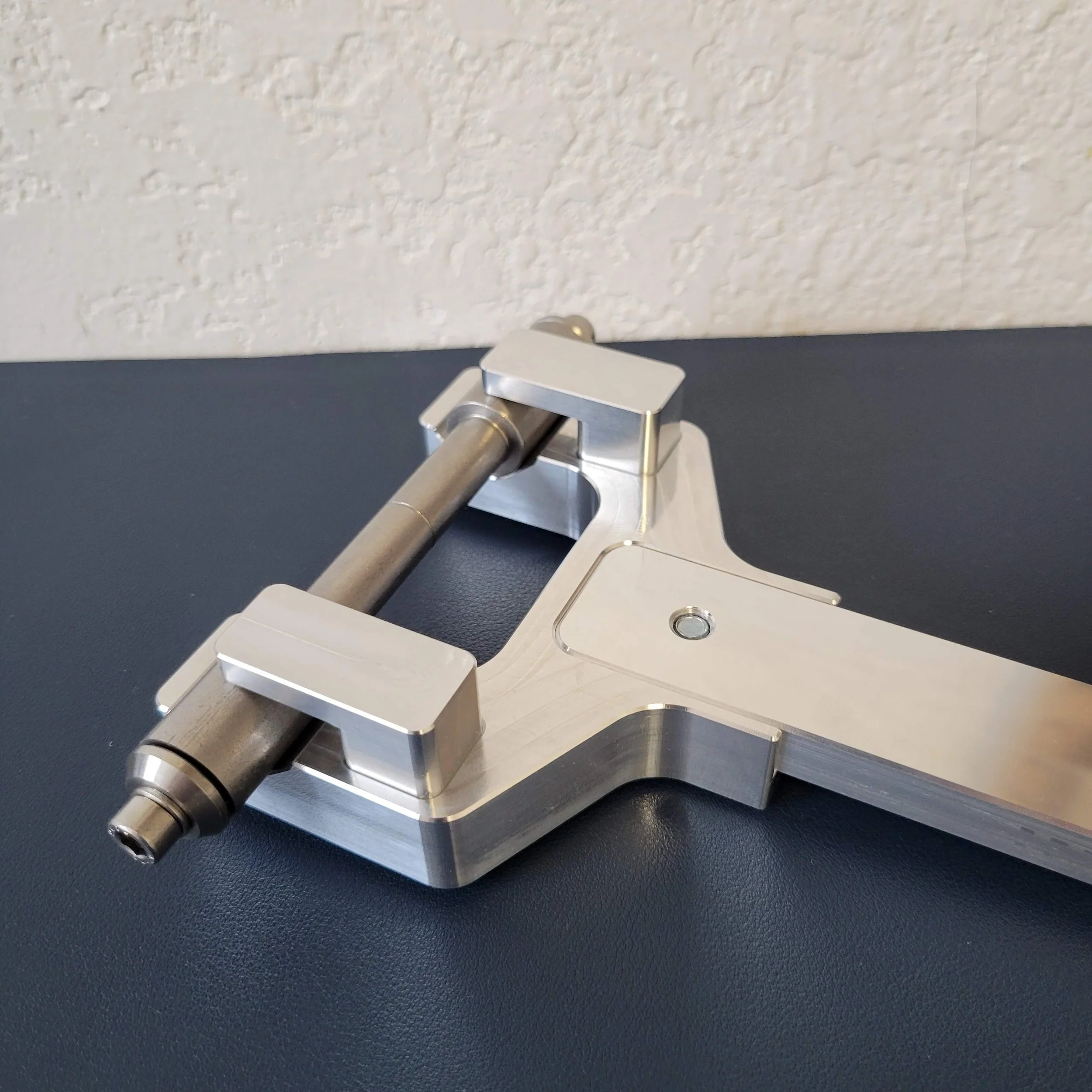

Works with both .75” and 1” OD dummy axles.
Dummy axles for sale with the purchase of a Centering Fixture.

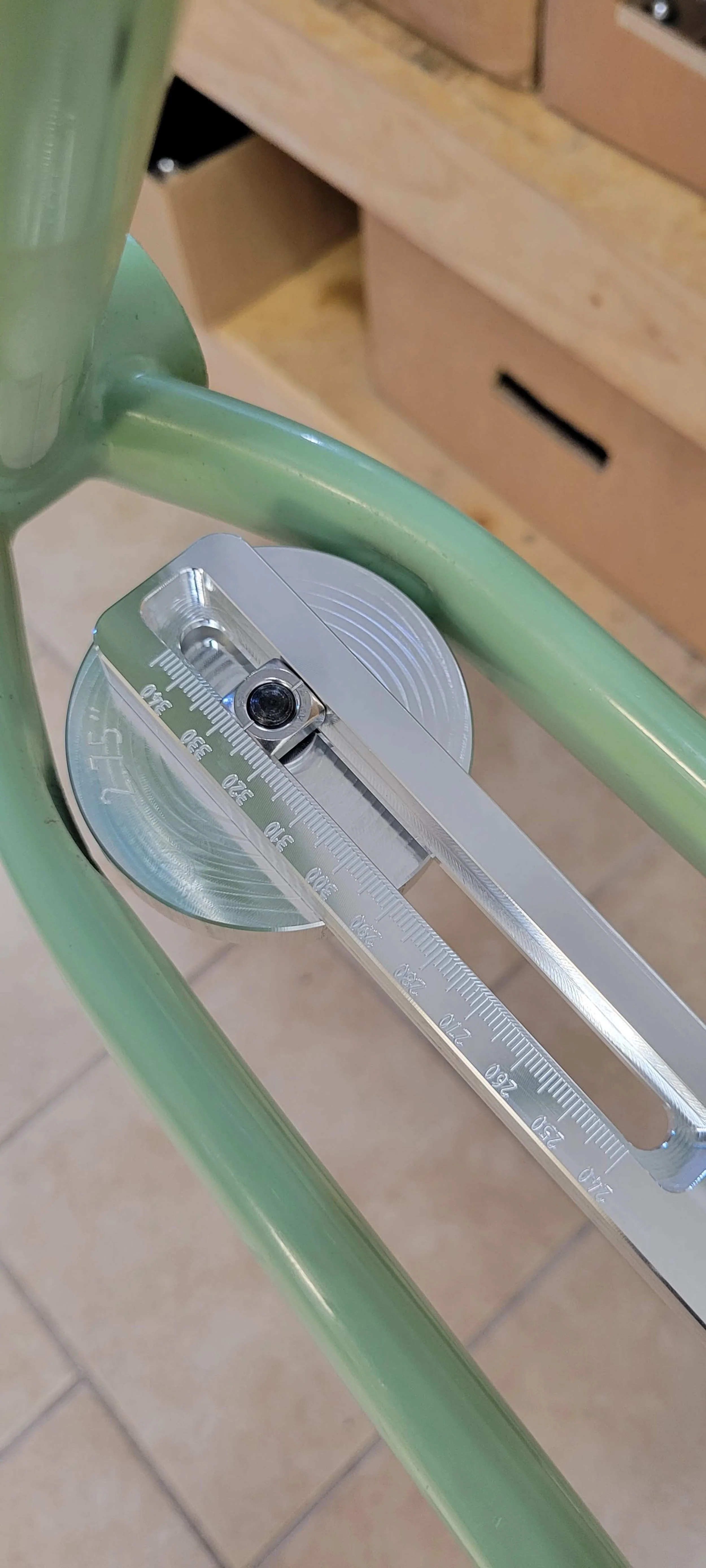

The scale allows you to calculate the wheel radius using this formula:
(Bead Seat Diameter + Tire Width) / 2
Ships with a bare, machined aluminum finish.
The tool will be centered within .127mm (.005”) at the far end of the slot.

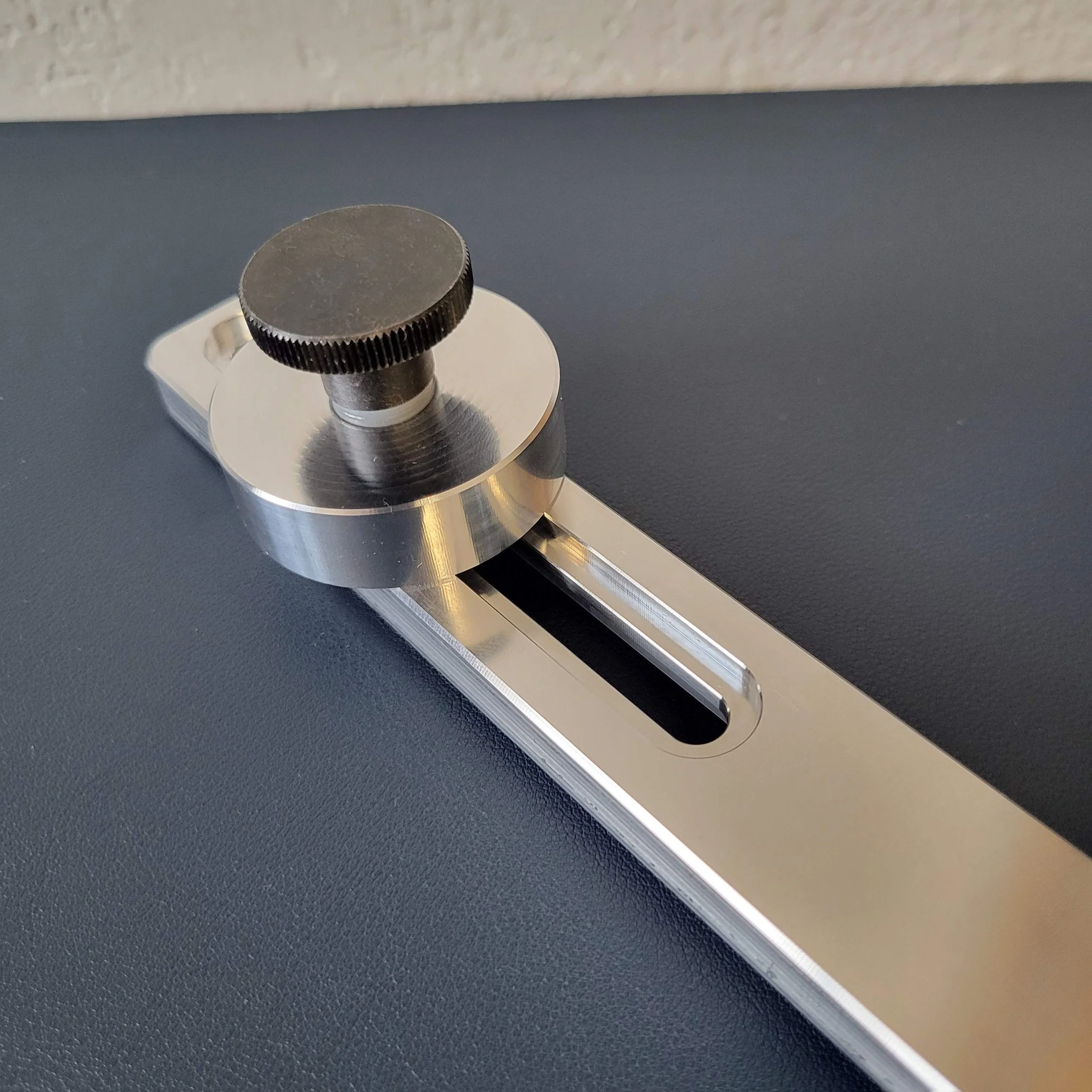

2 Puck sizes of your choice are included. Additional pucks are available for $35 each.
Available Puck sizes:
35mm - 38mm - 40mm - 44mm - 48mm
2.0” - 2.25” - 2.4” - 2.6” - 2.75”
The puck diameter tolerance is ±.04mm (±.0015”)
Shipping Rates:
US- $20 USD
Canada- $30 USD
Germany, United Kingdom, France and Italy- $65 USD
Import fees and duties for international orders vary by country and are generally paid by the buyer while the order is in transit.
For all other international shipments, please contact us at flumemfg@gmail.com for a shipping quote.
